| General |

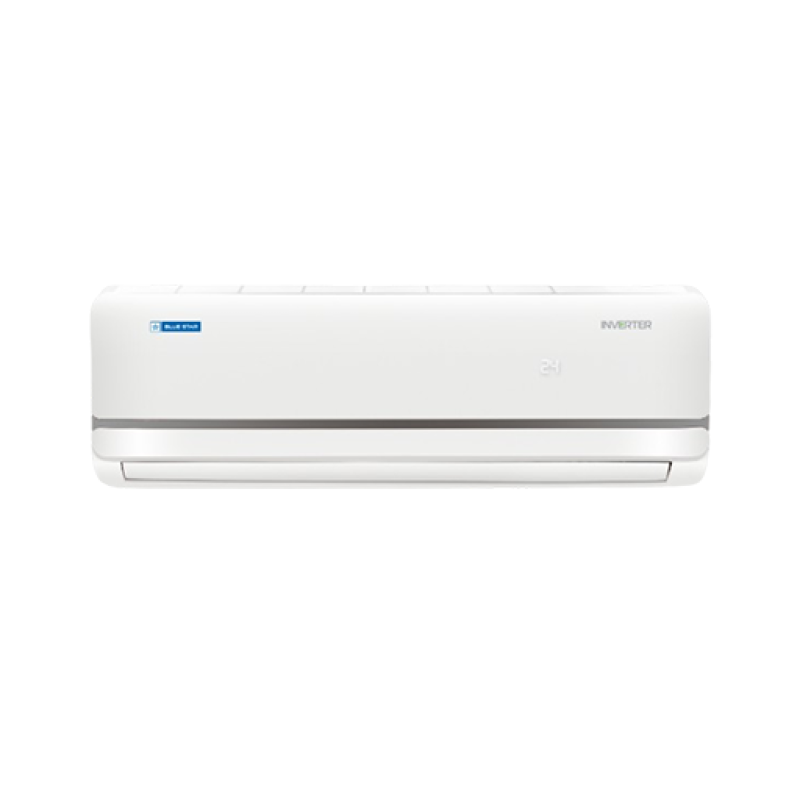

IB312SKU-Inverter Split AC 1.0 Tr 3 Star |
IB324SKU-Inverter Split AC 2.0 Tr 3 Star |
| Series Name |
S |
S |
| Nominal Cooling Capacity (tonnage) |
1 |
2 |
| Star Rating |
3 star |
3 star |
| Rated Voltage/Frequency/Phase |
230 V / 50Hz / Single |
230 V / 50Hz / Single |
| Cooling Capacity (Watt) (Min~Max) |
3450 (1633 - 3735) |
6300 (2191 - 6678) |
| Cooling Capacity (BTU/hr) |
11771 |
21495 |
| Rated Cooling Capacity (50% Load) (Watt) |
1725 |
3150 |
| Cooling Rated Power Input (Watt) |
1100 |
2020 |
| Cooling Capacity (BTU/hr) (Min~Max) |
11771 (5571 - 12743) |
21495 (7475 - 22786) |
| Cooling Power Input (50% Load) (Watt) |
418 |
760 |
| ISEER |
3.9 |
3.9 |
| Electricity Consumed In 1600 Hours. (Units/Year) |
684.94 |
1251 |
| Nominal Current (Cooling)(Amps) |
5.05 |
8.9 |
| Air Flow Volume (Wet CFM) (High / Medium / Low) |
323 / 255 / 185 / 141 |
554 / 482 / 413 / 339 |
| Noise Level Indoor (dB(a)) (High / Medium / Low) |
44.2 / 39.7 / 37.3 / 33.6 |
51.1 / 46.4 / 41 / 36 |
| Moisture Removal (Litres/Hour) |
1.31 |
2.12 |
| Compressor Type |
Inverter Rotary |
Inverter Rotary |
| Acoustic Jacket On Compressor |
Yes |
Yes |
| Refrigerant Quantity(Kg) |
0.43 |
1.05 |
| Ambient Temp (Cooling) (degree C) |
52 |
52 |

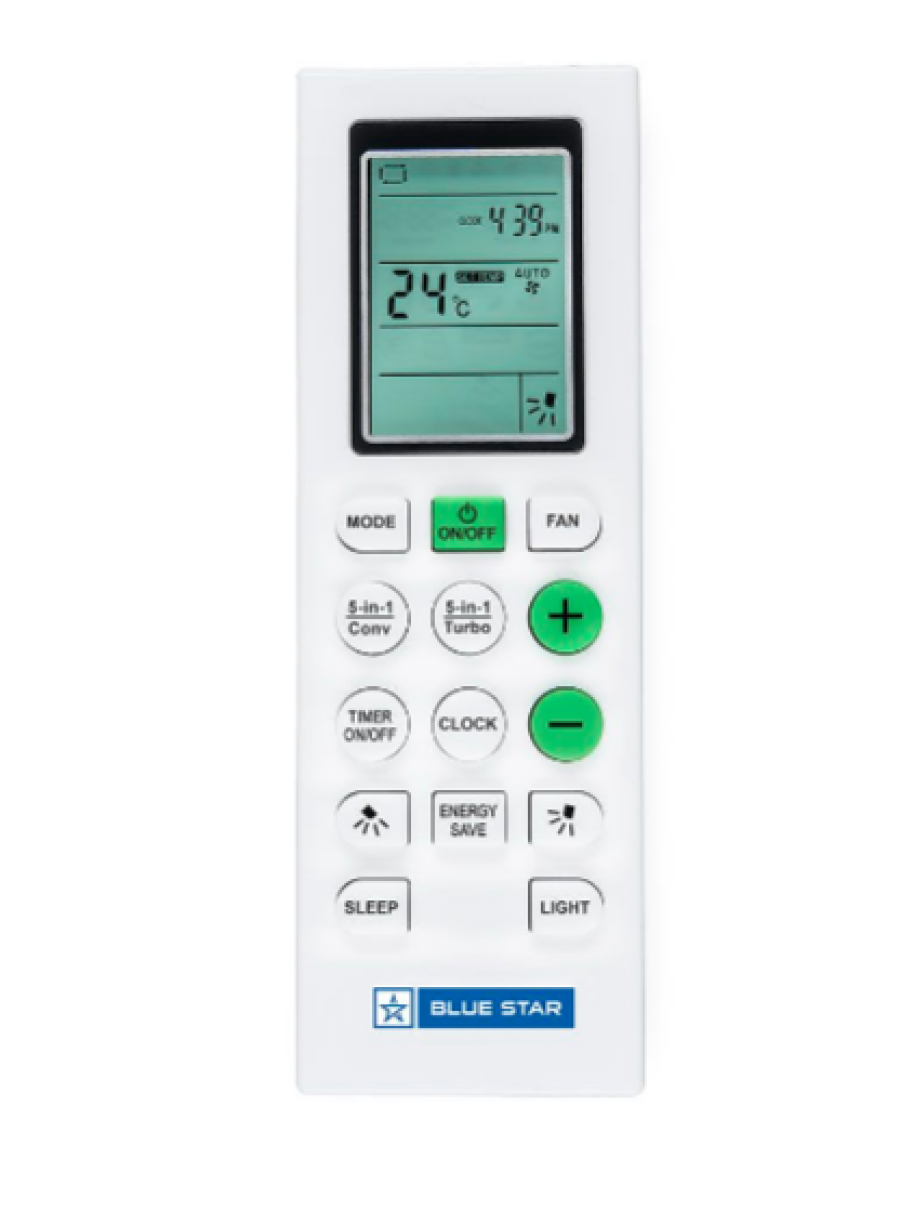

| Remote |
LCD Remote with Display |
LCD Remote with Display |
| Night Glow Function On Remote Buttons |
Yes |
Yes |

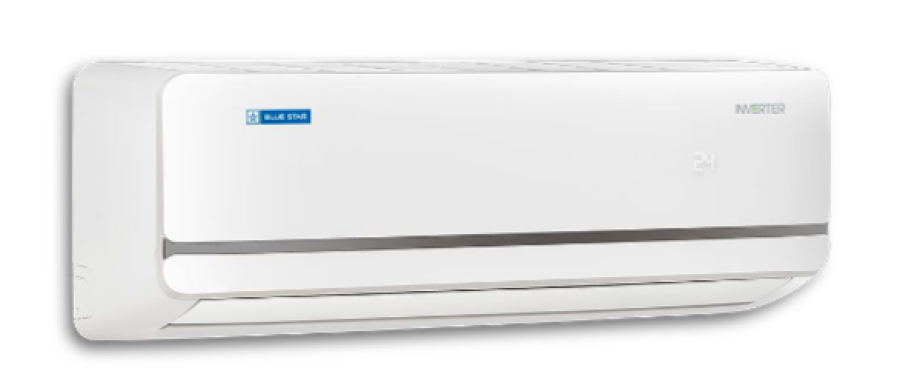

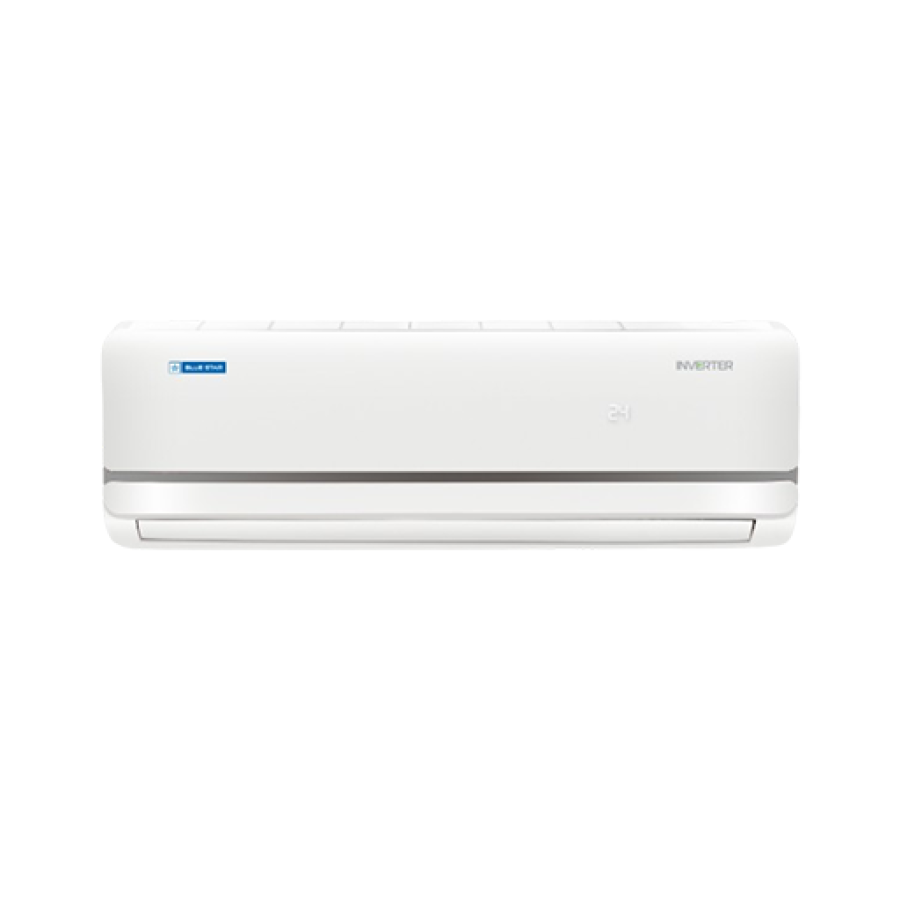

| Net IDU(Product) Dimension (mm) |
798 x 300 x 203 |
950 x 317 x 223 |
| Input Power Supply |
IDU |
IDU |
| Net Weight IDU (kg) |
8.3 |
10.8 |

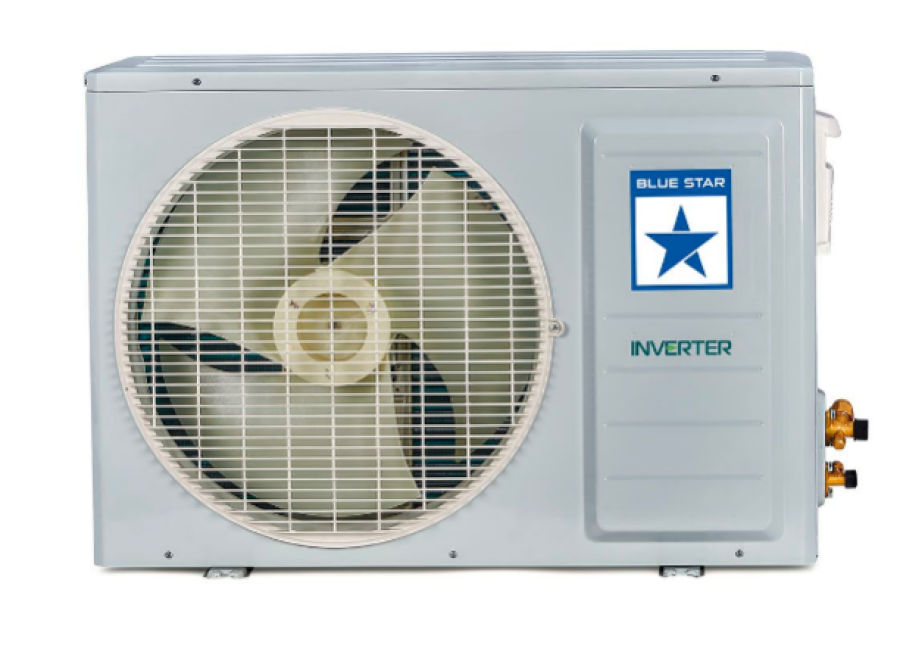

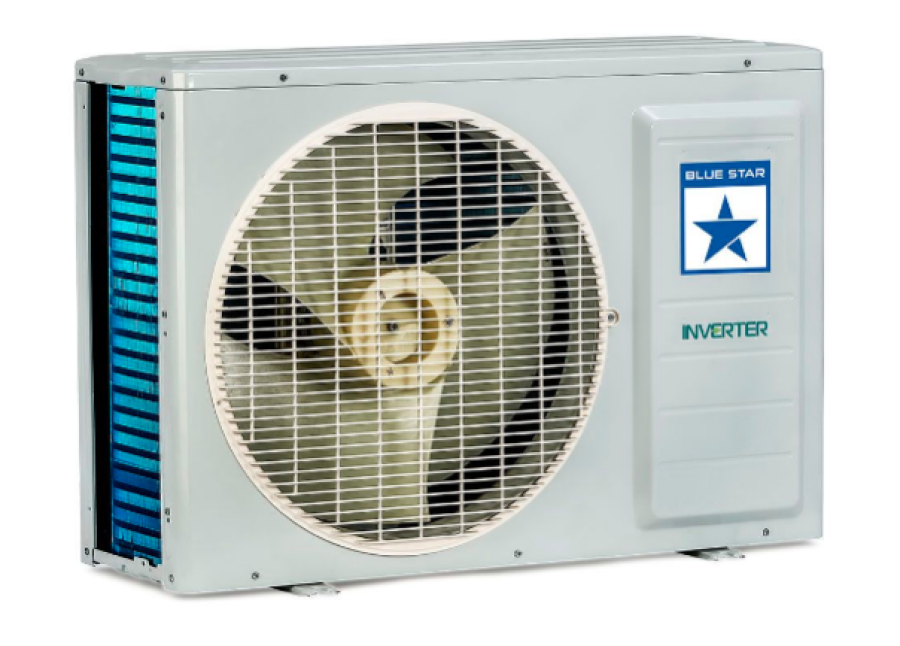

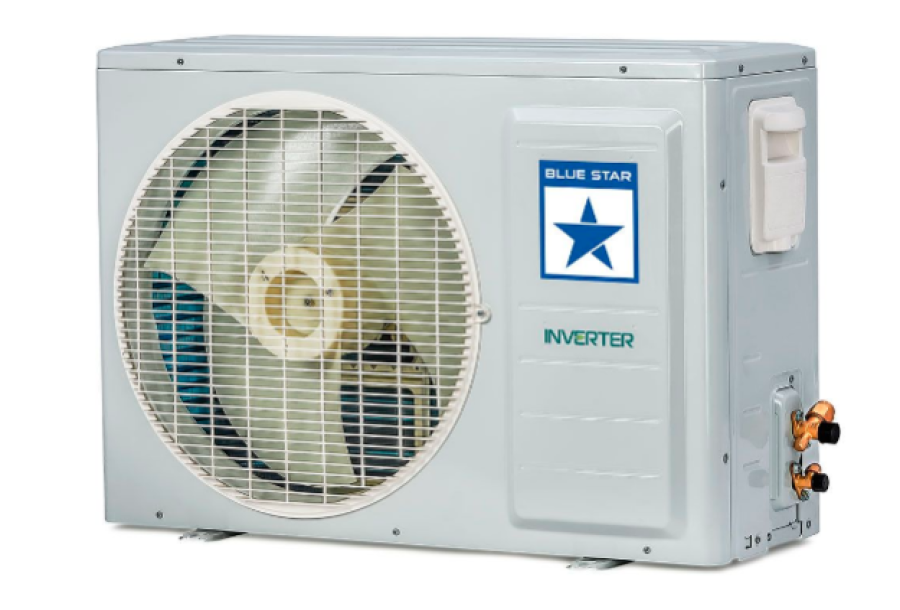

| Net ODU Dimensions (Width X Depth X Height) (mm) |
740 x 442 x 250 |
811 x 571 x 280 |
| Net Weight ODU (kg) |
19.5 |
28.5 |
| Noise Level Outdoor (dB(a)) |
55 |
53 |
| Gross IDU Weight (kg) |
10.2 |
12.7 |
| Gross ODU Weight (kg) |
22 |
33.5 |
| Suction Tube Size Outer Diameter Inch (mm) |
3/8" (9.525mm) |
1/2" (12.7mm) |
| Liquid Tube Size Outer Diameter Inch (mm) |
1/4" (6.35mm) |
1/4" (6.35mm) |
| Max Piping Capability Total (metre) |
15 |
15 |
| Max Piping Capability Vertical (metre) |
10 |
10 |
| Refrigerant Additional Charge Beyond 4M (g/m) |
15 |
15 |
| Power Supply to ODU Source(Core/Gauge) |
4C * 1.0sqmm |
4C * 1.5sqmm |
| Power Supply to IDU Source(Core/Gauge) |
3C * 1.0sqmm |
3C * 1.5sqmm |
| Features Refrigerant |
R32 |
R32 |

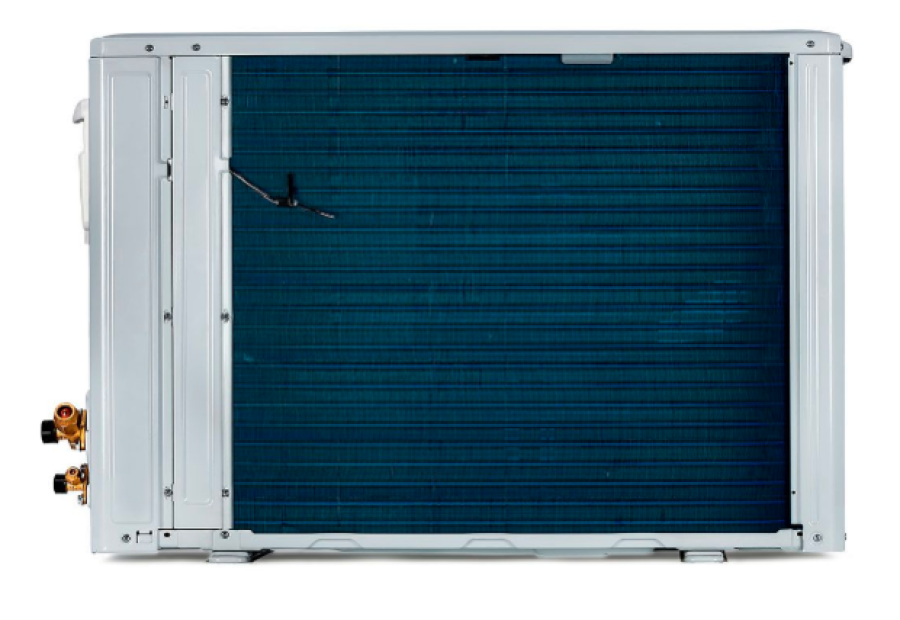

| Features Condenser Type |
100% Copper |
100% Copper |
| Air Conditioner Technology |
Inverter |
Inverter |
| Warranty |
Life-time Warranty on Inverter Compressor |
Life-time Warranty on Inverter Compressor |
| Features Additional Warranty Option |
1+4 Year Extended Warranty |
1+4 Year Extended Warranty |
